Active Matrix Mixer
US$1299.00- To purchase, please visit our Dealers section.
“Even when it is not in service, the Passive Matrix Mixer never fails to charm every colleague and client who visits my studio.”
— Stefan Konstantopoulos, Tape Op Magazine
Now, meet its bold evolution: the Active Matrix Mixer. Designed for musicians and sound explorers who demand both clarity and creative control, this version retains the iconic passive matrix architecture: five mono channels, with one input and one output each, all interconnected for endless routing possibilities.
But here’s where it gets exciting: each input features an NE553x-based preamp, delivering up to 19 dB of gain. From each center-detent potentiometer you can dial in gain from 0 to +19 dB in one direction, or 0 to +19 dB inverted in the other, offering phase inversion right at the input stage. The detented center of the pot is volume off. The preamps ensure your signal is amplified early, preserving headroom and minimizing noise critical for maintaining the integrity of your sound through the matrix’s passive attenuation (~12–13 dB).
To complement this, the outputs are buffered with NE553x op-amps, ensuring signal integrity and guaranteeing at least +6 dB of output headroom when the preamps are maxed. Powered by ±15V, the Active Matrix Mixer delivers robust performance, whether you’re splitting guitar signals to multiple pedal chains, creating intricate feedback loops, or summing modular synth patches.

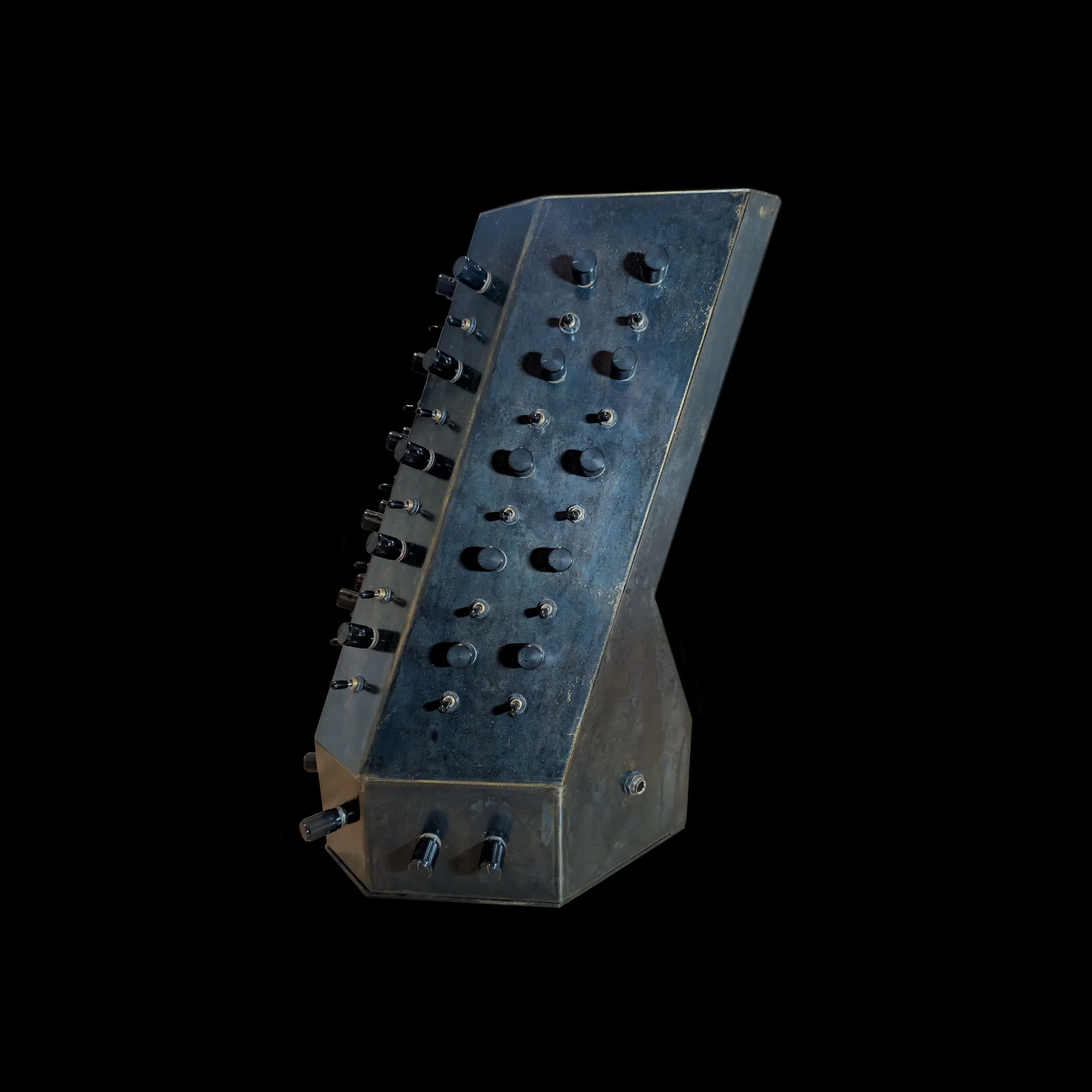

Like its passive sibling, the Active Matrix Mixer exudes timeless charm and modern craftsmanship. The hand-patinated steel enclosure and pristine signal path reflect our commitment to both aesthetics and sonic purity. Every unit is meticulously fabricated, soldered, assembled, and tested by our team in Montreal, and backed by a five-year warranty.
A mixer for those who push boundaries. Amplify your creativity, not your noise.
-
Features:
Efficient operation with included 18V, 300mA power supply any polarity
Easily accessible on/off switch located above the DC input
Orange LED indicates power and status

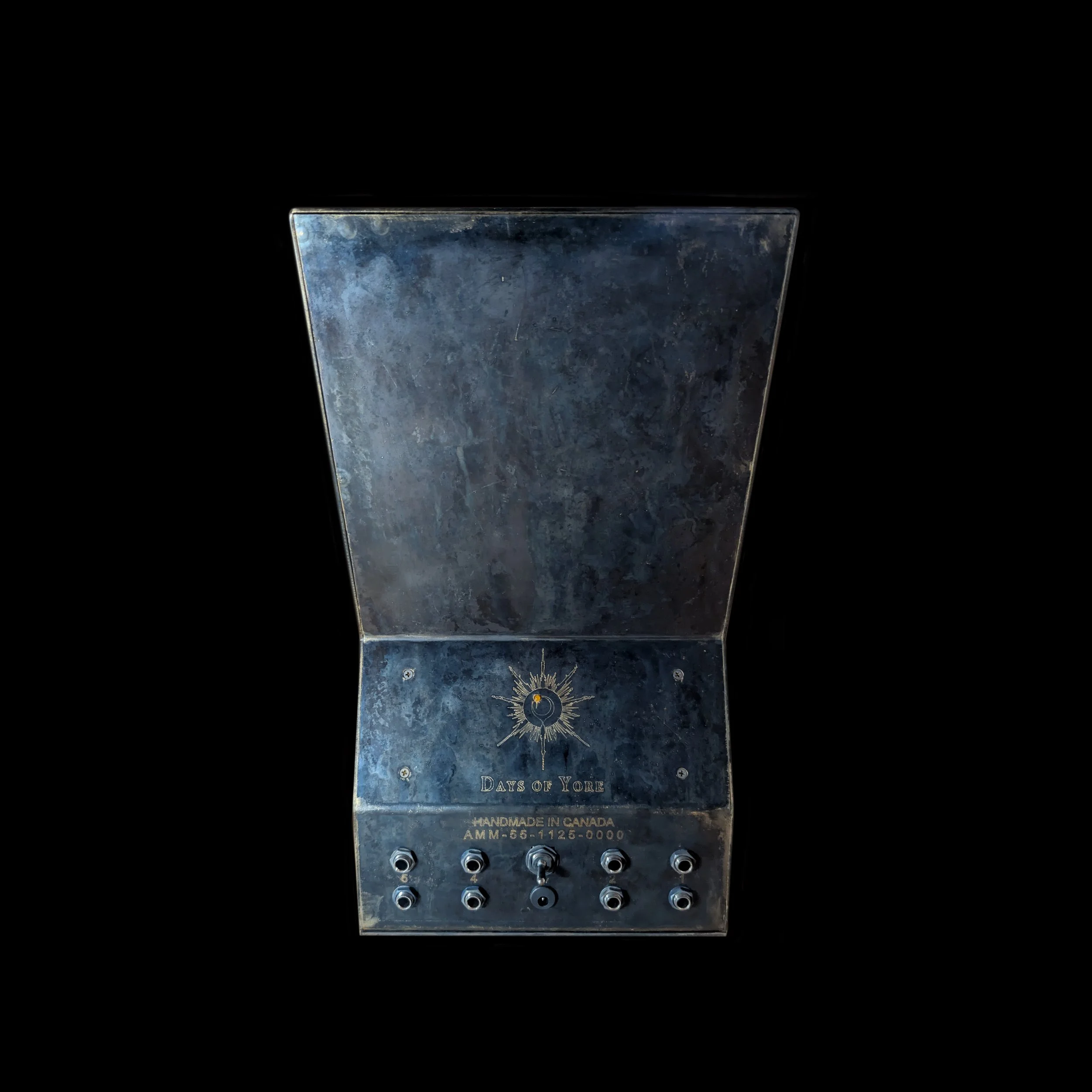

Five inputs/ 5 outputs ¼” jacks located at the back of the unit

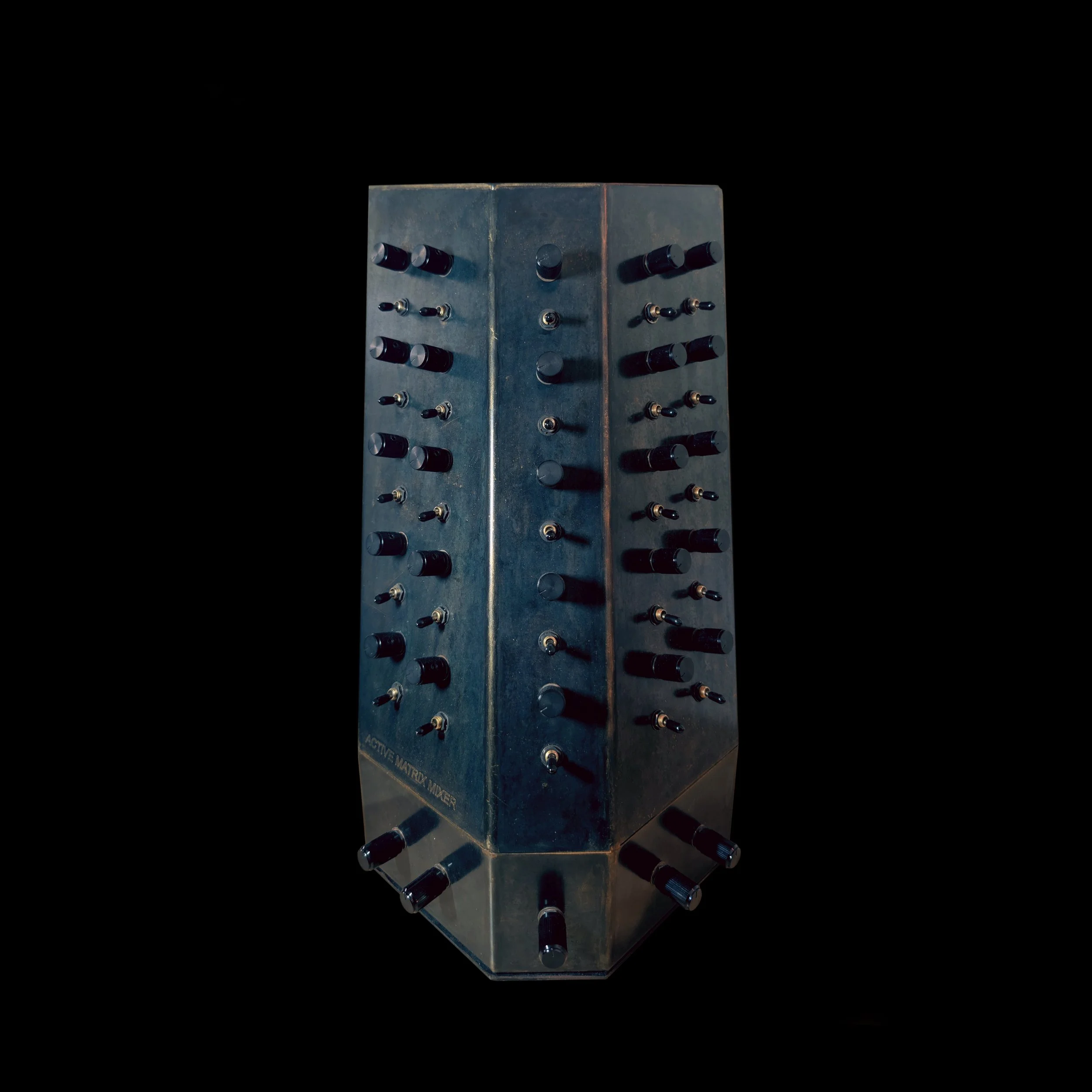

Five preamp knobs at the front base of the unit, center-detent potentiometers to access phase inversion.
Additional information:
Power supply: included
Inputs: ¼” TS Unbalanced
Outputs: ¼” TS Unbalanced
Current consumption: 170 mA
Power consumption: 3..06 W
Dimensions: 14.5”h x 8”w x 7”d
Weight: 10.00 lbs
